Transmission Code 09D, TR60SN
09D, TR-60SN Transmission Repair Manual for Audi Q7 (2006-2010), Porsche Cayenne (2003–2010) and Volkswagen Touareg (2006–2010)

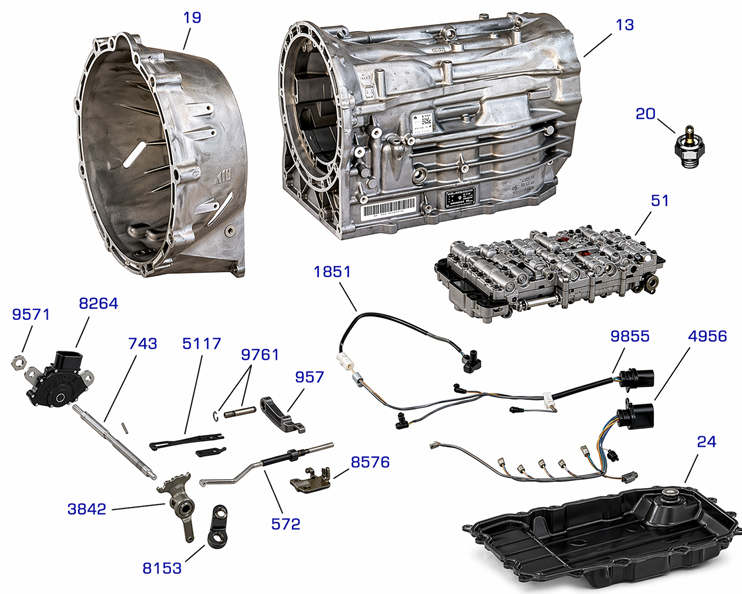

Automatic transmission – 09D, TR60SN Case:
| No. | Part name |
| 4956 | Electrical Wiring kit |
| 9855 | Electrical wiring |
| 1851 | Speed sensor |
| 22 | Plug seal ring |
| 51 | Accumulator Piston |

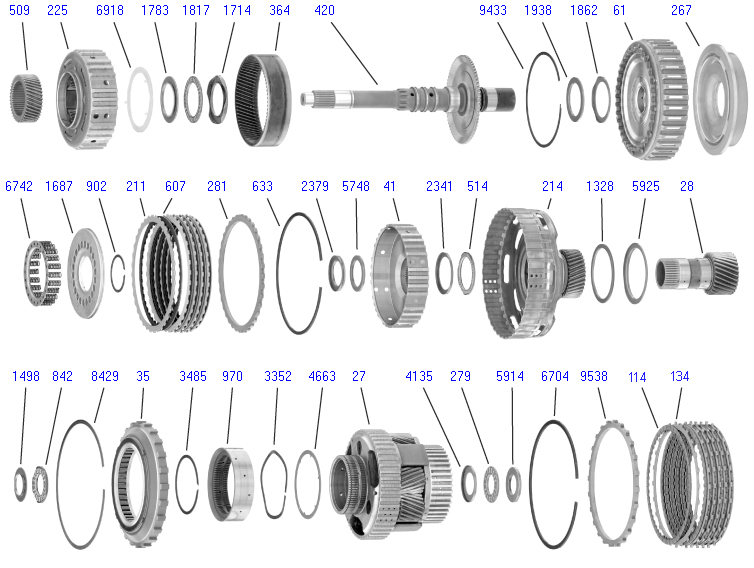

Automatic transmission – 09D, TR60SN Gear Train:
| NO. | Part Number |
| 35 | Overrun clutch |
| 134 | Steel disc |
| 281 | Support disc |
| 211 | Steel disc |
| 27 | Rear Planetary gear |
| 420 | Input shaft |
| 214 | Hub |
| 225 | Planetary gear mechanism |
| 61 | Drum k1 |
| 607 | Friction disc |
| 114 | Friction disc |
| 41 | Hub |
Automatic – 09D, TR60SN Output Shaft:
| No. | Part Number |
| 445 | Steel disc |
| 22 | Drum |
| 792 | Friction disc |

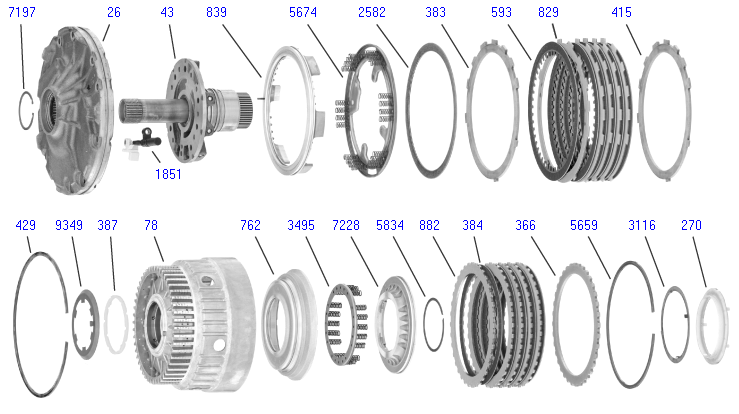

Automatic transmission – 09D, TR60SN Pump:
| No. | Part Number |
| 366 | Support disc |
| 829 | Steel disc |
| 415 | Support disc |
| 1851 | Speed sensor |
| 78 | Drum |
| 593 | Friction disc |
| 882 | Steel disc |
| 384 | Friction disc |
| 26 | Pump seal |
